Stuck on "Looking for Packet Capture Adapters"

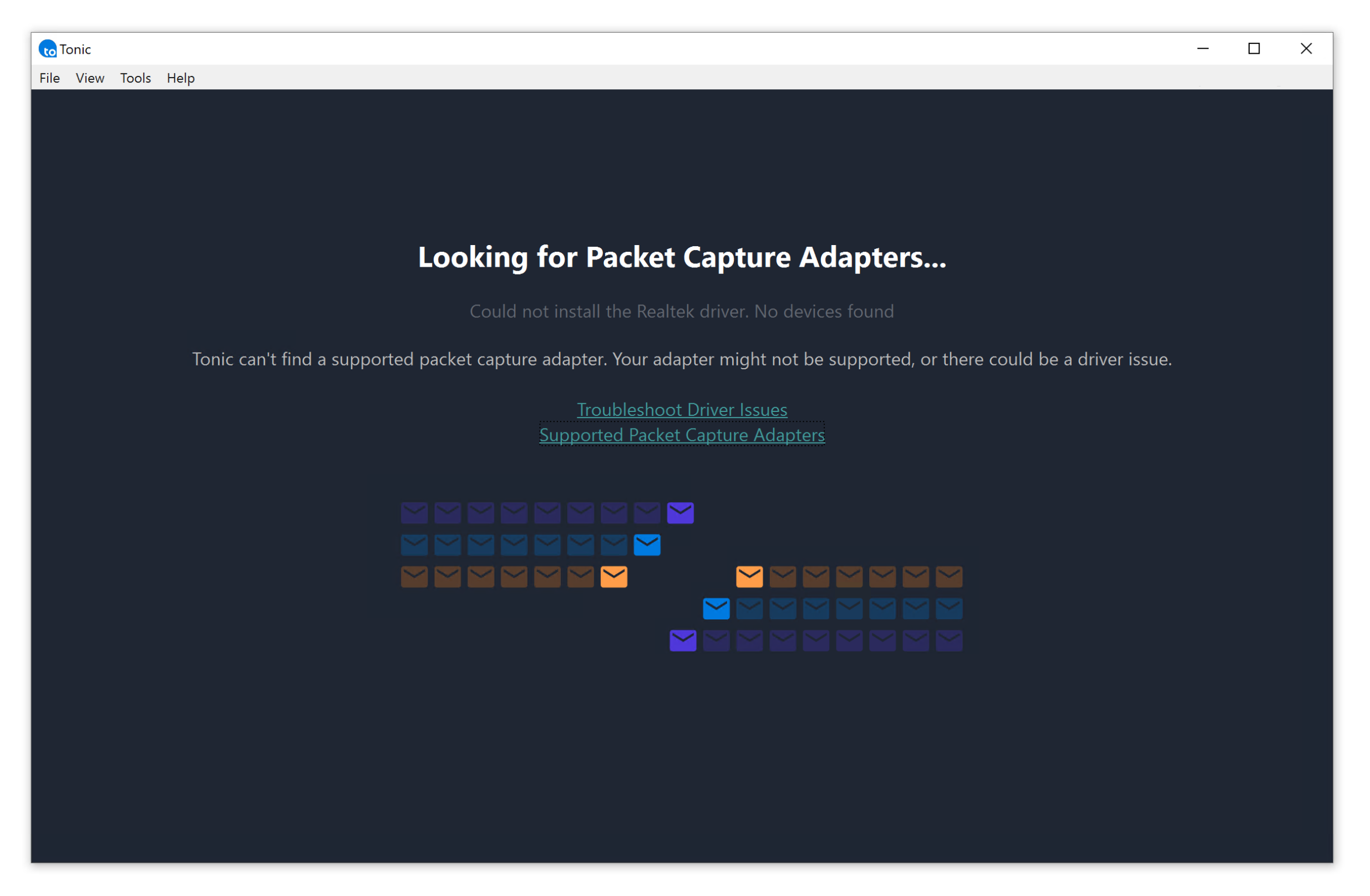

If MetaGeek App gets stuck on "Looking for Packet Capture Adapters", this means that it is not receiving packets from a compatible packet capture adapter. This is usually because a compatible packet capture adapter is not present, or MetaGeek App wasn't able to swap in the packet capture driver.

Or, MetaGeek App might not be seeing your active subscription. Please make sure you are subscribed or reach out to support@oscium.com for a trial.




Check Packet Capture Adapter Support

Make sure you have connected a supported packet capture adapter. See our list of supported packet capture adapters for more information.

Manually Swap in the Driver

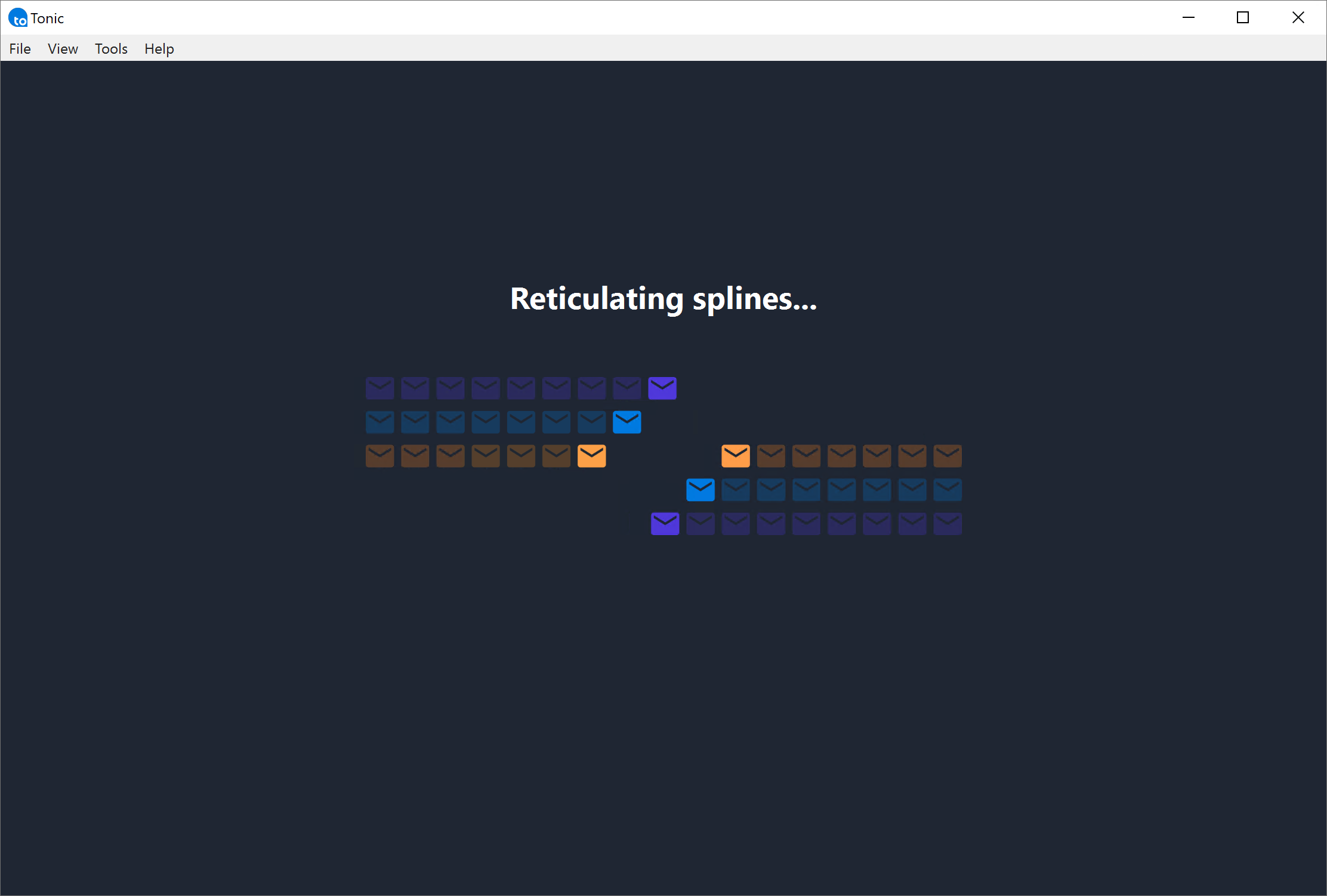

When MetaGeek App launches (when the "Reconfiguring Wi-Fi Adapter" message appears), it attempts to swaps out the adapter's normal driver for a special packet capture driver. If the driver is not swapped successfully, then MetaGeek App will not be able to see the packet capture adapter.

It is possible to manually swap in the packet capture driver and begin capturing packets in Tonic.

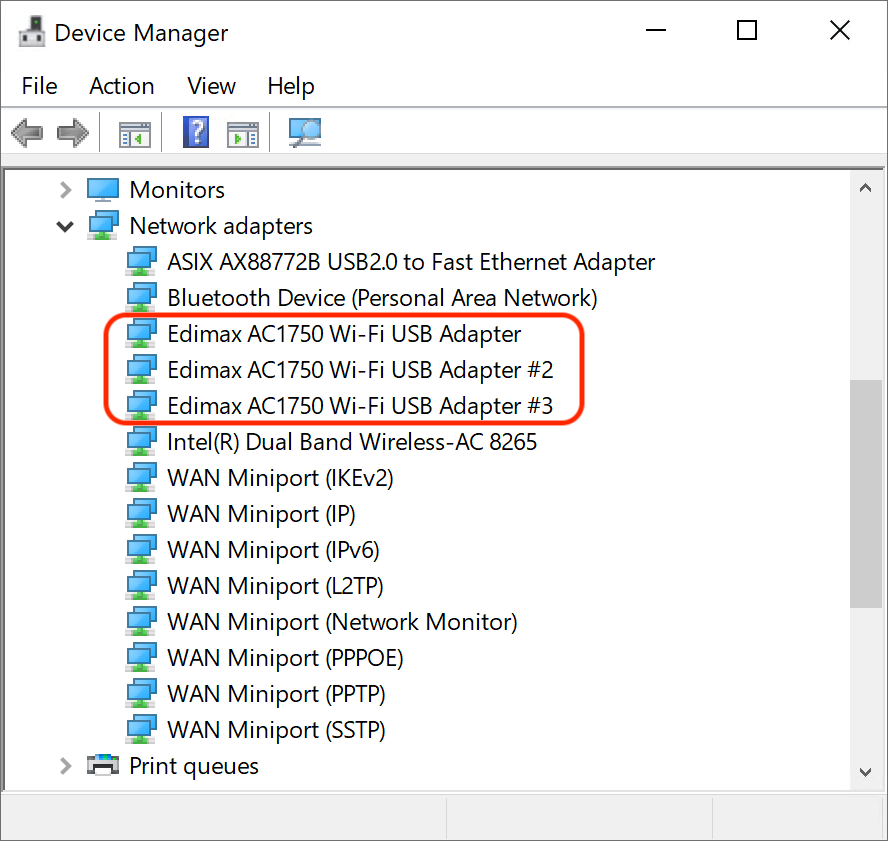

1. While MetaGeek App is running, open the Device Manager. You should see the adapter(s) listed. They may be using a standard driver, or they may not have a driver installed.

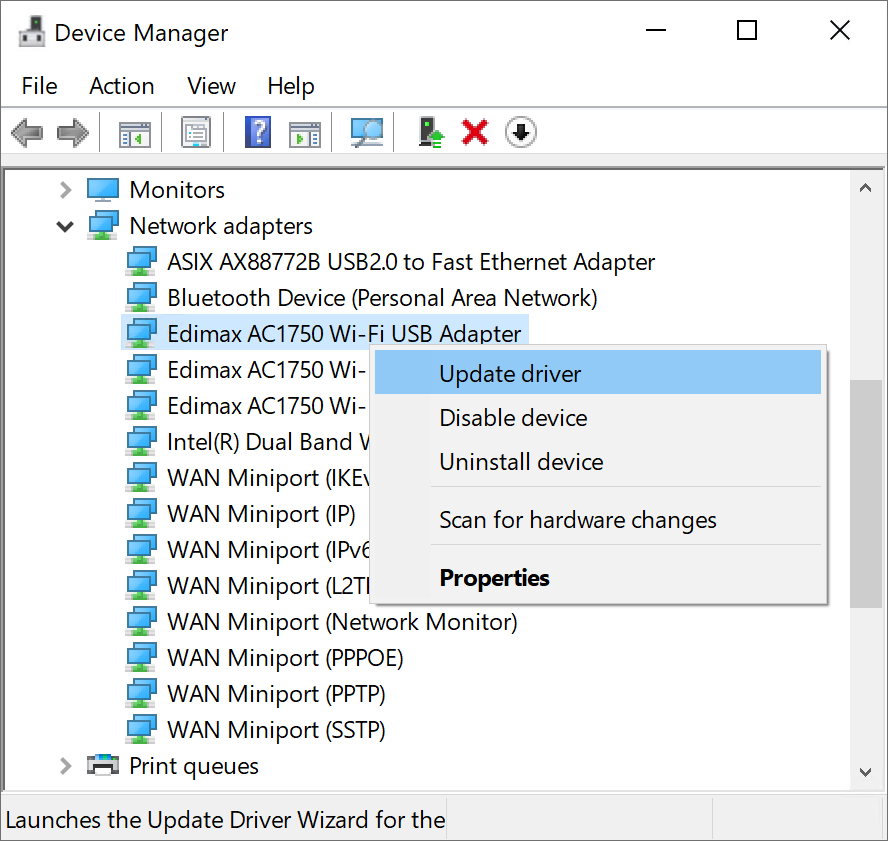

2. Right-Click the packet capture adapter and select Update Driver

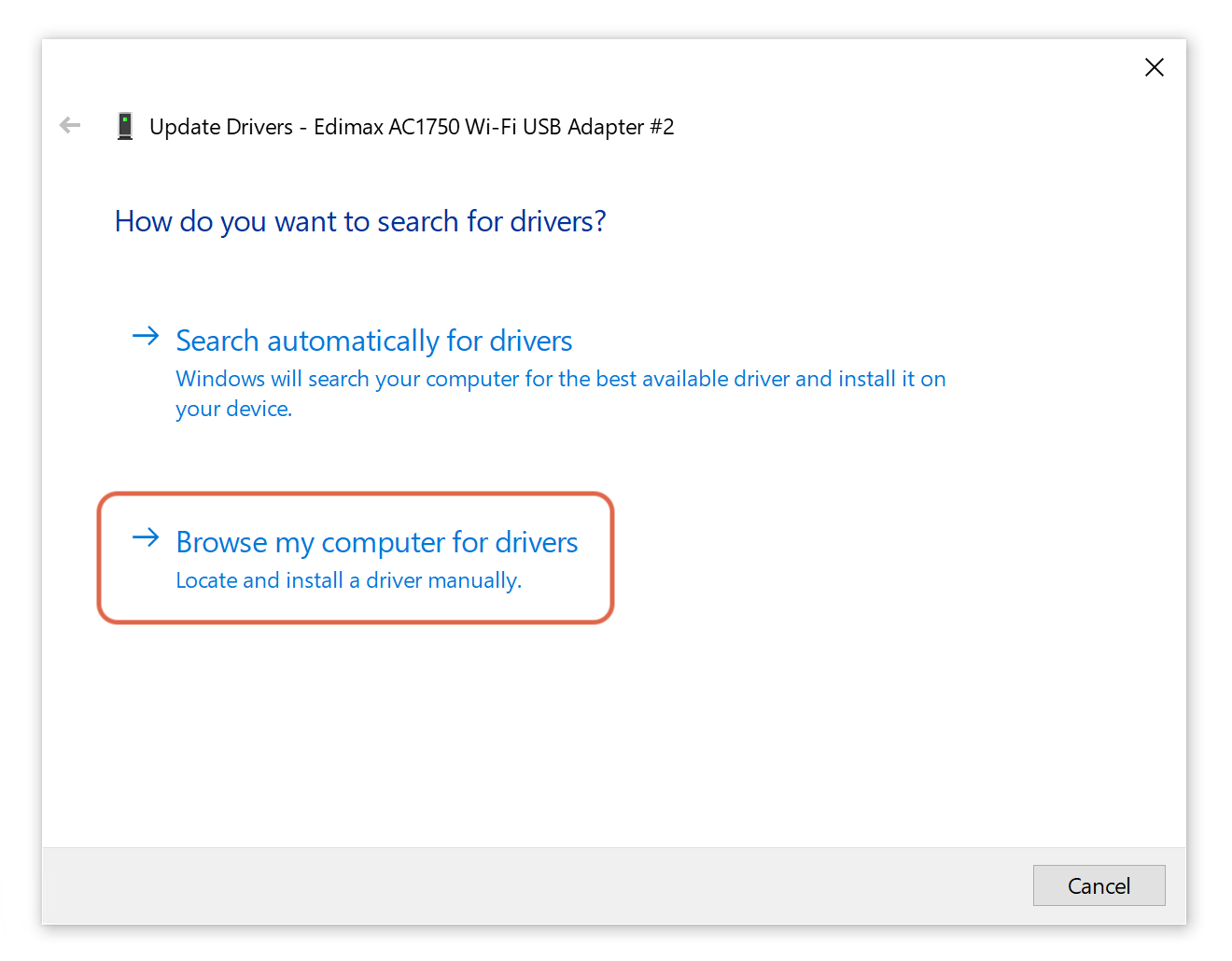

3. Select Browse my computer for drivers. Note: If you have multiple adapters, you may be able to select Search automatically for drivers for subsequent adapters.

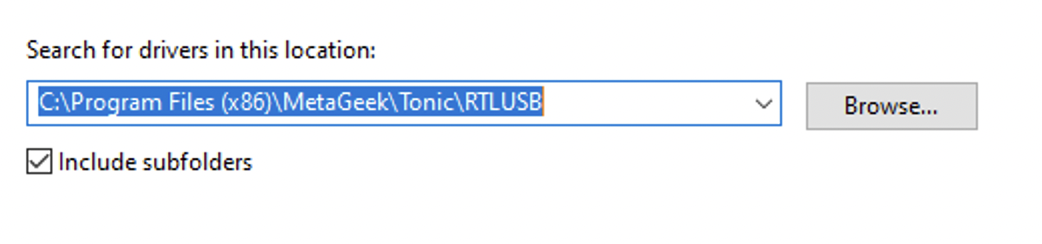

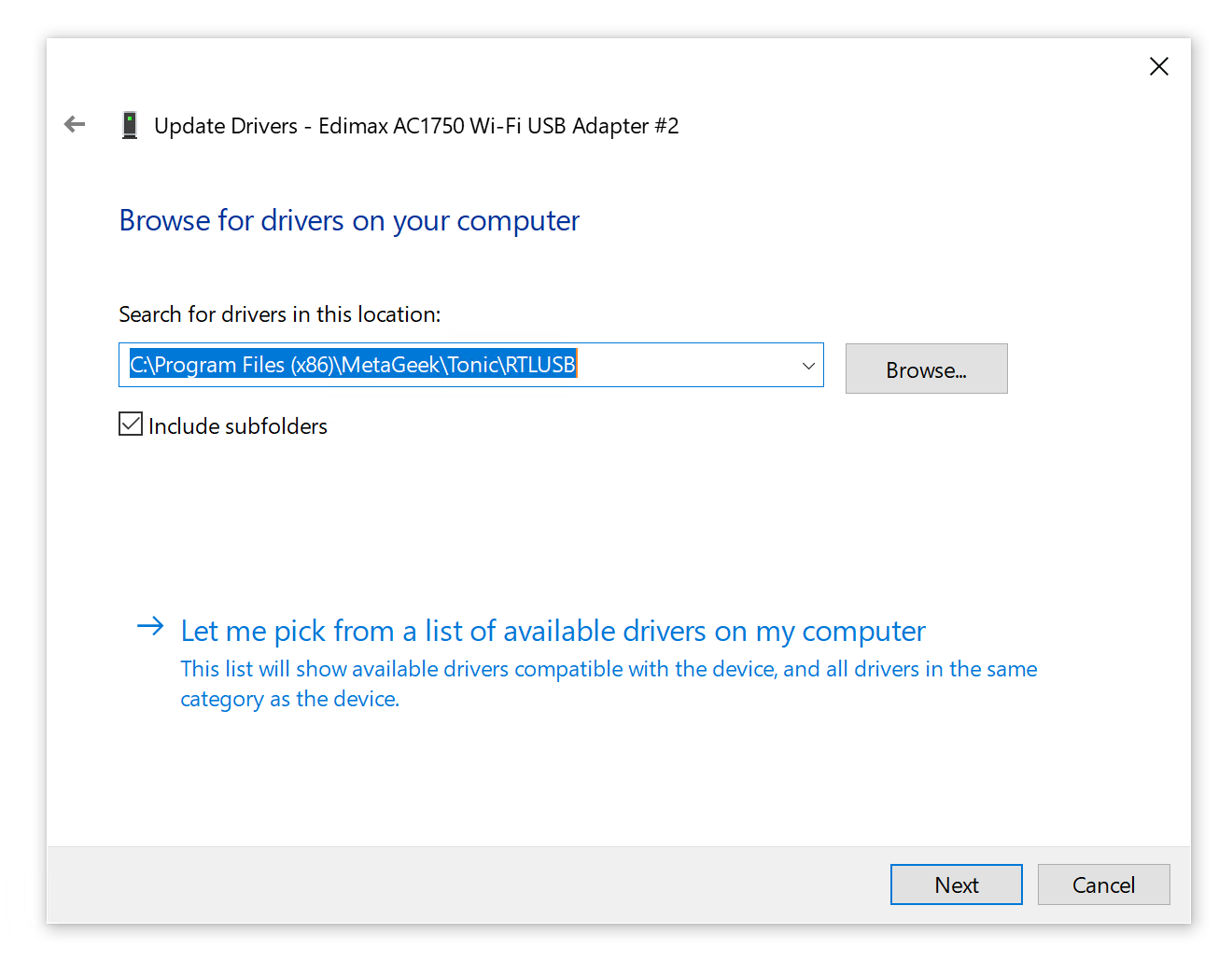

4. When Windows asks where to find drivers, use the path C:\Program Files (x86)\MetaGeek\Tonic\RTLUSB. driver-path.png

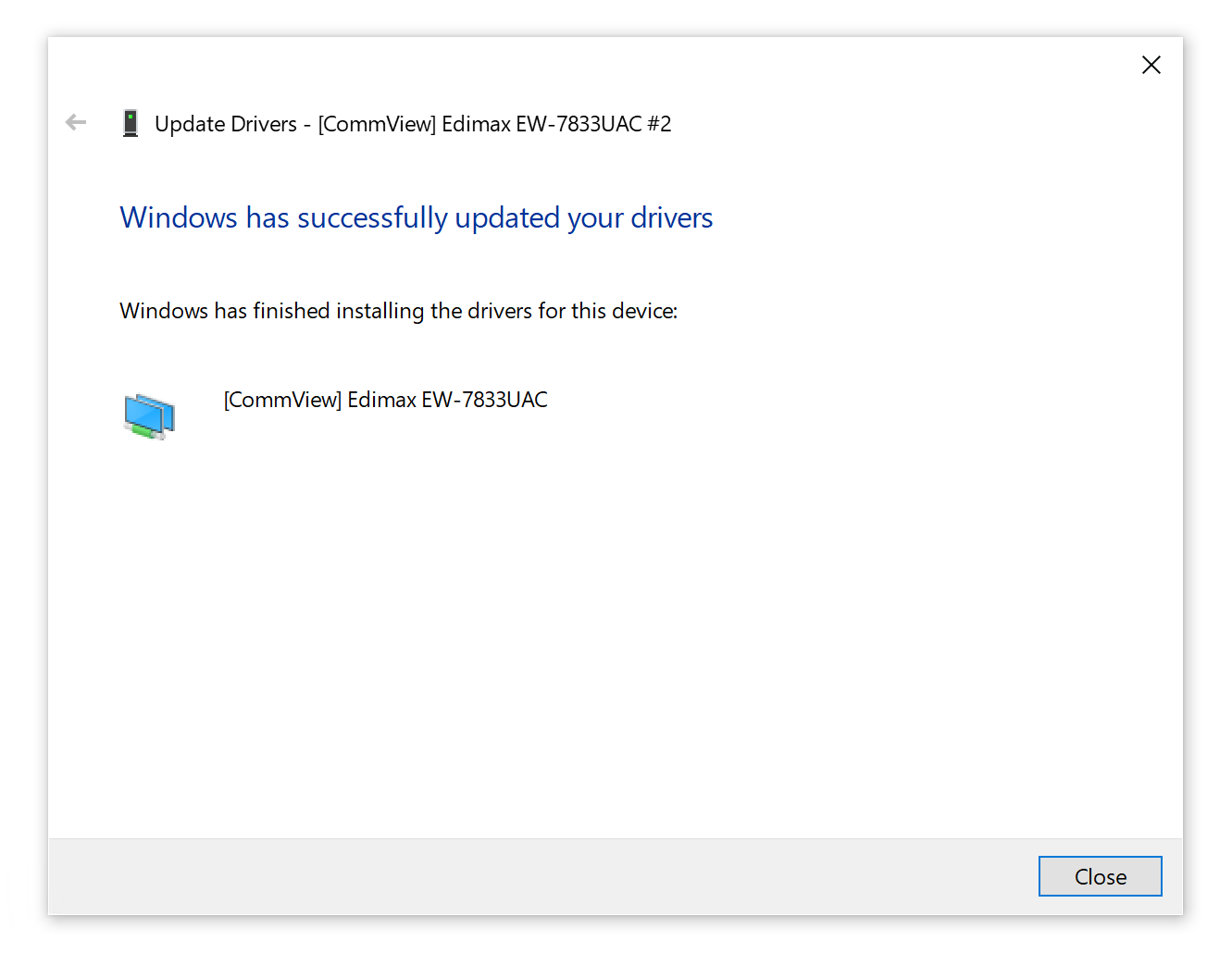

5. If Windows finds and accepts the drivers, the device name should include a "[CommView]" label.

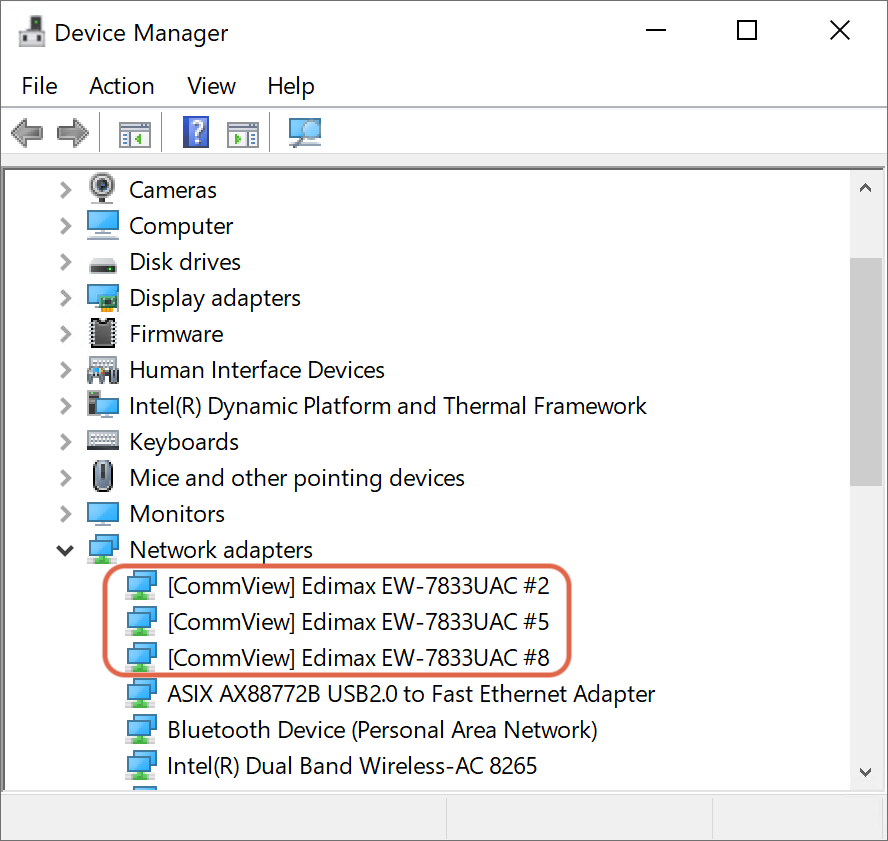

6. Repeat the above steps for subsequent PCAP adapters, until all packet capture adapters show the "[CommView]" label in their device name.

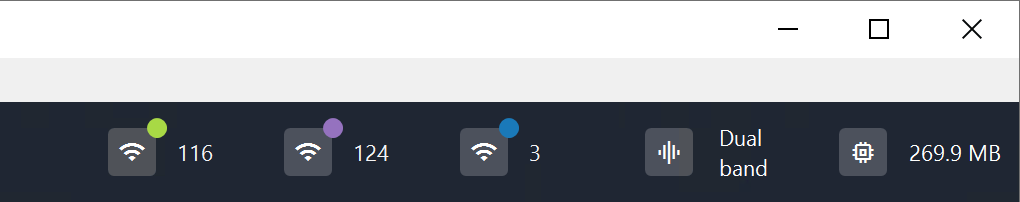

7. Check back with MetaGeek App, which should now be capturing packets. Check the Status Pane in the upper right to ensure that all packet capture adapters are functioning properly. Note: Tonic supports a maximum of three concurrent packet capture adapters.


UPDATE 2/24/2023

If the above doesn't work, please try the following to retrieve the latest drivers from TamoSoft:

  1. Download these updated drivers here.
  2. Download the latest installer from the vendor's website. Confirm that the USB shows up as a WLAN interface.

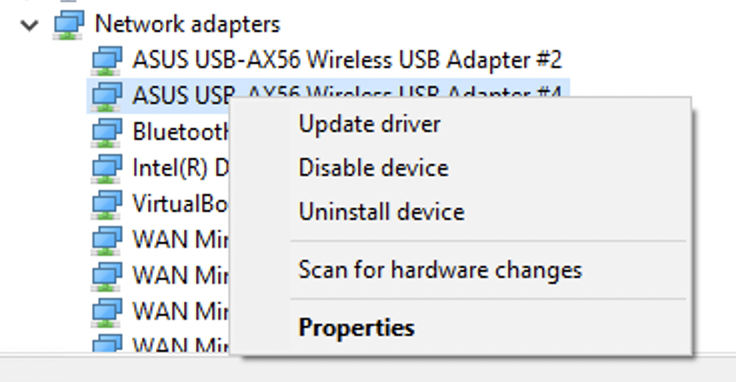

  3. Open "Device Manager" right click on the ASUS adapter under network adapters. image.png
  4. Choose "update driver"

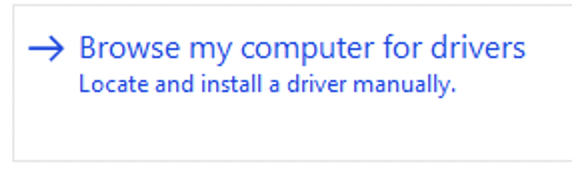

  5. Then select "browse my computer for drivers.image.png

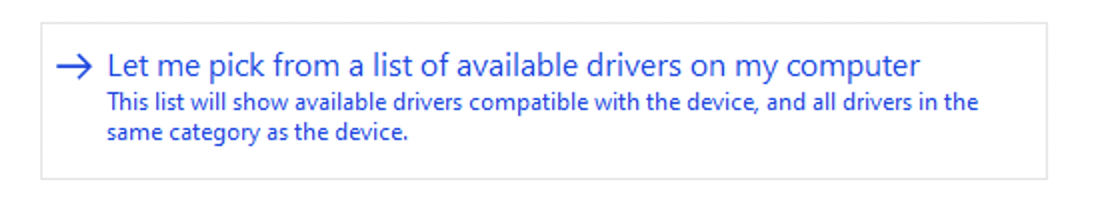

  6. Then choose "Let me pick from a list of available drivers on my computer" image.png
  7. If that doesn't show up, use the "browse" button to navigate to the files you just downloaded.image.png

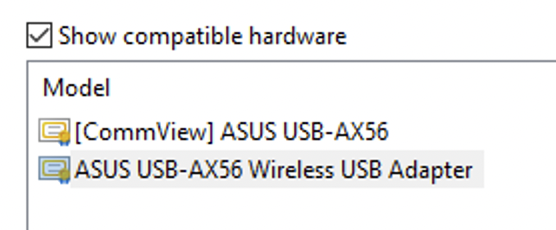

  8. You should see a "[CommView]" driver show up in the window. image.png
  9. That's the driver MetaGeek App uses. If this still doesn't help, please reach out to support@oscium.com.
