The current directional antenna data sheet can be found here.
See below for legacy antennas:
Alfa APA-M25 directional antenna specifications
|
Frequency Range |
2.4-2.5 GHz / / 5.150 - 5.875GHz |
| Impedance | 50 ohms |
| Horizontal Beamwidth | 66 degrees |
| Vertical Beamwidth | 16 degrees |
| Gain | 8 dBi @ 2.4GHz / 10dBi @ 5GHz |
| Compatible Wi-Spy Models | Wi-Spy 2.4x, Wi-Spy DBx, Wi-Spy Air |
| Required Software | Chanalyzer 5 |

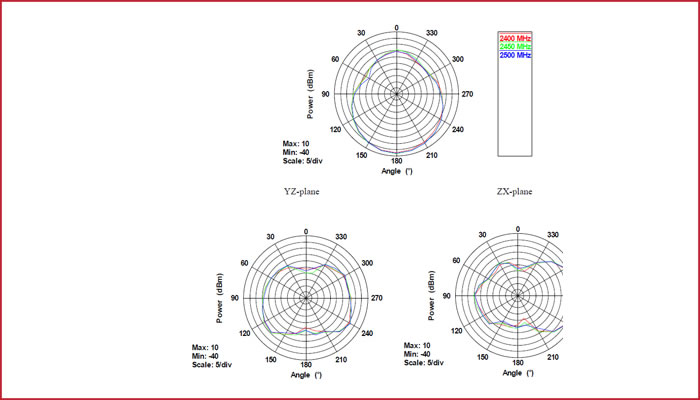

Azimuth and Elevation Chart (2.4 GHz)

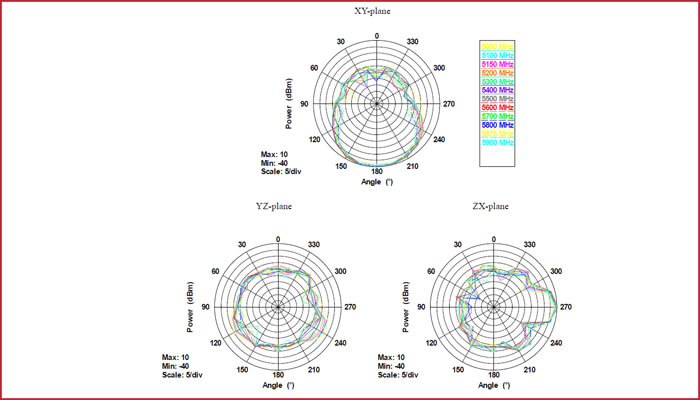

Azimuth and Elevation Chart (5 GHz)
MetaGeek Device Finder specifications (discontinued in 2019)
|
Frequency Range |
2.4-2.5 GHz |
| Impedance | 50 ohms |
| Horizontal Beamwidth | 60 degrees |
| Gain | 7 dBi |
| Compatible Wi-Spy Models | Wi-Spy 2.4x, Wi-Spy DBx |
| Required Software | Chanalyzer 5 |

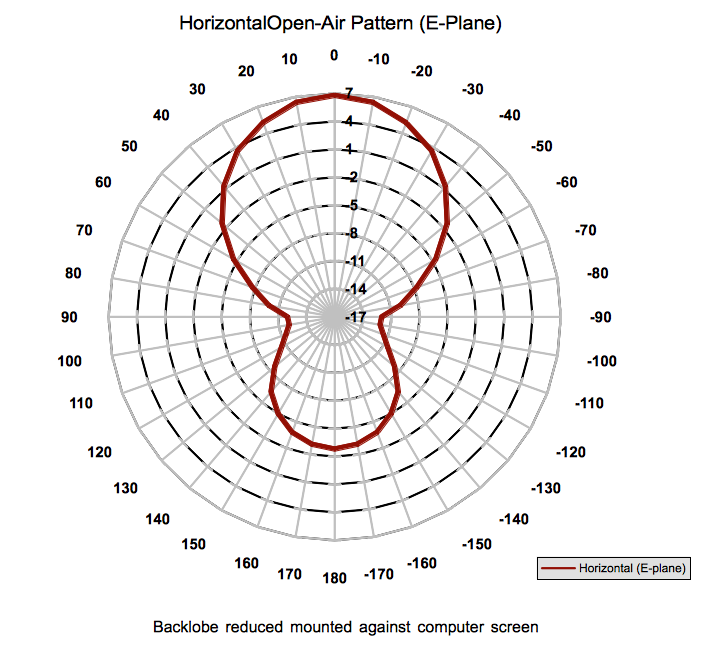

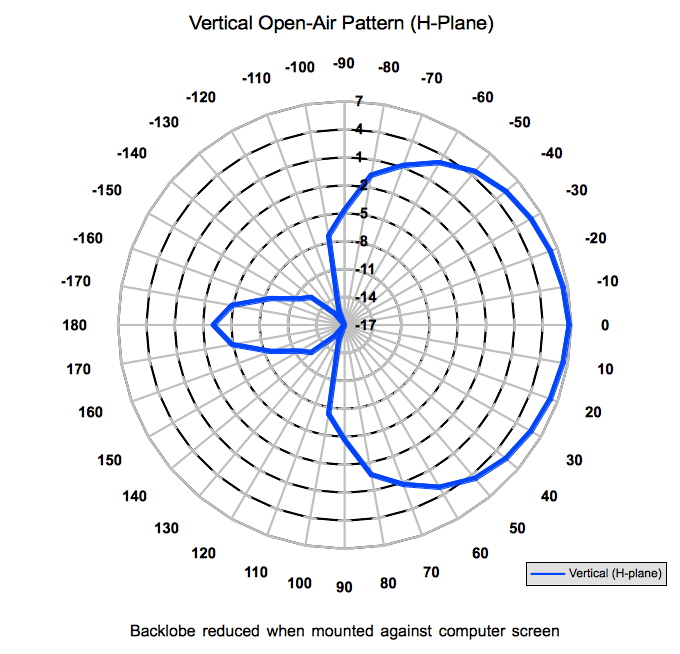

Azimuth and Elevation Charts
